Resonance Systems Ltd. has granted Process NMR Associates the exclusive rights to promote, market and sell it's NMR products and custom NMR hardware in the Americas.
The basic product of the company is a portable NMR-analyzer called Spin Track that can be used for many different low and high resolution NMR applications. Spin Track meets the requirements of many relaxation and diffusion based NMR analyses.

  • Food industry (Solid Fat Content Analysis, Dairy Products, Oil and Moisture in Chocolate, Powdered Milk, Cheese and other food products; Oil and Moisture in seeds, Emulsion Characteristics)
  • Lipid Analysis - Fatty Acid Distribution
  • Cellulose and paper manufacturing (Moisture/Crystallinity Analysis, investigations of ageing effects)
  • Oil industry (rock cores analysis, oil-water, oil-water-gas, viscosity, physical property correlation, )
  • Polymer and rubber industry (Curing degree and elasticity analysis, polymer ageing, glass transition, amorphous/crystalline content)
  • Chemical industry (Density, Melting Points, Copolymer Ratios, Compatibility, Cure, Cross Linking, H or F content,
  • Medicine (NMR Surface Analysis of Patients, Plasma Analysis)
  • Environmental (Water Pollution, Forest Degradation, Soils, Fertilizers)
  • Fibers - Moisture and Finish Content
  • Pharmaceuticals (Tablet Analysis, Coatings/Components/Moisture, Hydrogen/Fluorine/Sodium Content)
  • Relaxation, Diffusion, Particle Size, Pore Size Distribution
Utilization of mobile NMR measurement equipment from Process NMR Associates provides the following advantages:
  • Reduction of expenses associated with meeting quality requirements of products
  • Simplicity of use in routine production measurements and in advanced laboratories for complicated analysis
  • Mobility of the hardware and low cost for the overall device
  • Non-invasive measurements of any sample
  • Hardware solutions for non-standard NMR applications
  • Permanent technical support and comprehensive scientific consulting
  • Fair price and absolute ease of operation!

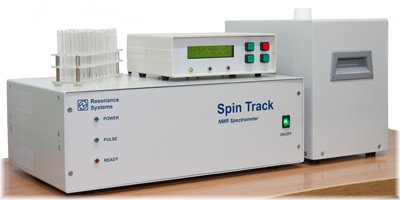

Portable Low-Resolution NMR Analyzer - Spin Track

Analyzer is designed to perform:
  • All standard NMR applications
  • Development of new NMR-based techniques
  • Teaching quantum physics, NMR, analytical chemistry in Universities and Colleges
NMR analyzer Spin Track comprises functional parts (probes, preamplifier and duplexer, TX Power Amplifier, Sequence Generator and PC Interface, Data Acquisition System, NMR Transceiver) which can be purchased separately and used for the specific needs of an advanced customer (see example of connection assembly). Depending on the required magnet system the Spin Track can be used as NMR relaxometer or high resolution NMR spectrometer.

Basic characteristics of Spin Track analyzer:
  • Frequency range of the NMR spectrometer module: 5..60 MHz
  • Ringing time for 10 mm NMR probe is 8 ms
  • Probe tube diameter: up to 10 mm
  • Changeable preamplifiers and 50 Ohm matched duplexers with self bandwidth of 5 MHz
  • Customer-defined set of sensors (5, 10 and 40 mm test-tube magnet systems, NMR surface sensors)
  • Adjustable TX output power up to 500 Watts
  • Adjustable RX channel gain up to 107
  • RX Sensitivity better than 1 mV (conditions: signal to noise ratio 3)
  • Adjustable digital filter bandwidth from 100 Hz up to 1 MHz
  • Pulse sequence length up to 64K events with resolution 100 ns
  • Quadrature 64Kx10-bit data acquisition system
  • Complete control of functions via personal computer - USB 2.0 Connectivity
  • Fast sensors replacement
  • Compatible with all Microsoft® Windows® operating systems
  • Relax Software

Software

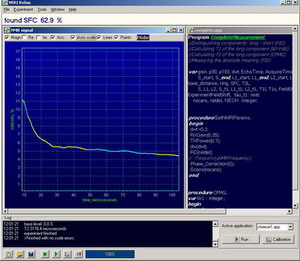

The product software, Relax, is a powerful tool containing many standard NMR relaxation routines and applications, and can also be used to create new pulse-sequences, pulsed field gradients, gains and attenuations, post-processing methodolgies of considerable complexity. The built-in script language is based on a widespread Pascal syntax and is enriched with commands for fitting, Fourier and Laplace transforms, Low-pass filtering, etc. The script supports dialogue windows, static messages, user-defined diagrams, data manipulation procedures. Relax also allows direct processing of data obtained when utilizing Spin Track as a high-resolution NMR spectrometer.






Educational Low-Resolution TD-NMR Spectrometer - designed to demonstrate NMR spin dynamics as well as provide a basic platform for undergraduate level chemistry and physics labs.
  • Standard routine NMR applications (FID, Spin Echo, CPMG, Carr-Purcell, T1-Determination (90-90 or inversion recovery))
  • Development of new NMR-based techniques - software allows development of pulse sequences by students without risk of instrument damage.
  • Teaching quantum physics, NMR, and analytical chemistry in Universities and Colleges
Basic characteristics of Stationary Spin Track Analyzer:
  • Frequency range of the NMR spectrometer module: 10..20 MHz
  • NMR Probe tube diameter: 5 mm
  • 10-20 MHz Magnets, Surface NMR Sensors
  • Changeable preamplifiers and 50 Ohm matched duplexers with self bandwidth of 5 MHz
  • Adjustable TX output power up to 100 Watts
  • Adjustable RX channel gain up to 107
  • RX Sensitivity better than 1 mV (conditions: signal to noise ratio 3)
  • Adjustable digital filter bandwidth from 100 Hz up to 1 MHz
  • Pulse sequence length up to 64K events with resolution 100 ns
  • Quadrature 64Kx10-bit data acquisition system
  • Complete control of functions via personal computer - USB 2.0 Connectivity
  • Compatible with all Microsoft® Windows® operating systems
  • Relax Software

Custom NMR Components

For NMR engineers and advanced specialists Process NMR Associates offers accessories to upgrade, modernize, or build new NMR related devices (see connection example). All modules can be purchased separately and modules can be developed with unique characteristics to fulfill special requirements of the customer. Other Available Components:
  • Pulsed Field Gradient Unit and PFG Probes
  • Probe Temperature Control Unit
  • NMR Lock System
  • NMR Magnet Systems and Probes - 1H resonance Frequency of 7.5 MHz, 19.5MHz, 40 MHz, 60 MHz
  • Peltier Dry Baths for Sample Tempering - SFC Analysis
Summary of Available NMR Magnets:
7.5
Strength Dimensions Weight Probe Dimension Homogeneity
(MHz) (cm) LxWxH (kg) (mm) Unshimmed - (kHz/cm)
20x30x20 25 10 or 40 1.4
7.5 16x16x16 8.5 10 ?
19.5 16x16x16 8.5 10 1.1
40 20x30x20 25 5 1.1
60 20x30x20 25 5 1.4

For a closer view, click on the images below

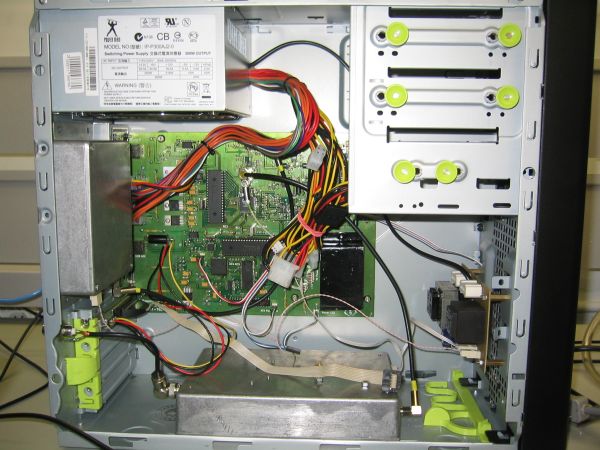

The Digital Spin Track NMR Spectrometer

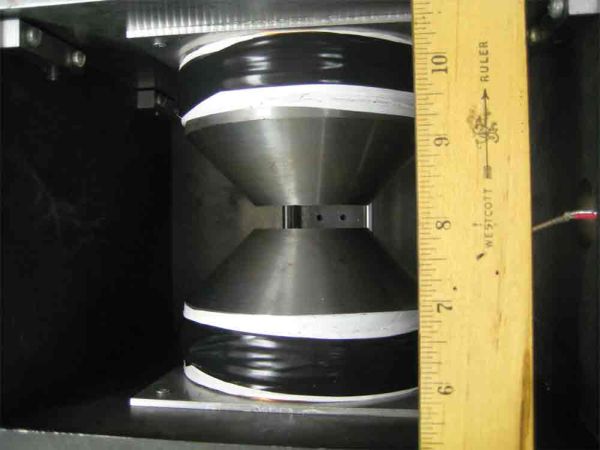

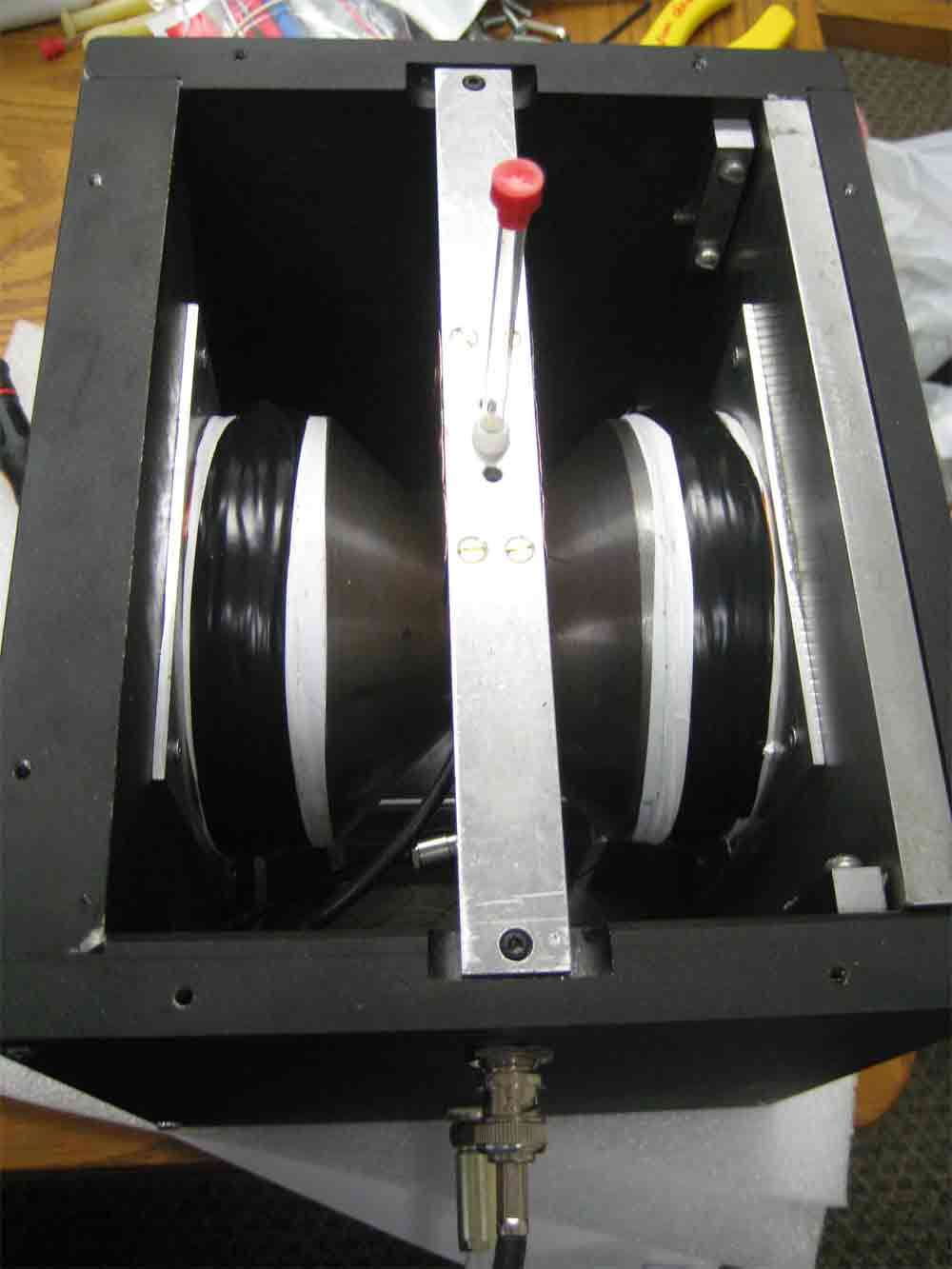

Magnet gap of 60 MHz TD-NMR Magnet System

For more information or to obtain a quote please contact John Edwards or call (203) 744-5905.
