Chemical Fingerprints of Cider – Cidercon 2018 Technical Presentation – Recorded and Presented on the Cider Chat Podcast

John Edwards presented a talk on the chemical analysis of ciders at Cidercon 2018. The talk was recorded by Ria Windcaller who produces the Cider Chat Podcast which specializes in interviews and news from the world of commercial and amateur cider making. Here is the information to listen or watch the presentation. I have set up your presentation as a full podcast episode and as a video recording, without the podcast. It totally works! Yay. :) Via the podcast your presentation begins around 13:02 minutes into this week’s episode. I learned so much about a area of study I didn’t even knew existed. I’m excited to think that your work will boost cider’s study as it does for the wine industry. There are lots of listening options to share as you please via Cider Chat- http://ciderchat.com/chemical-fingerprints/ This link above provides the description and a photo. It is set up to work with social media. I have posted it at the Cider Chat Facebook page if you want to see what it looks like, before sharing. Listen via: iTunes: https://apple.co/2yBsrz5 For Android the following Apps need to be downloaded to listen to podcasts. Stitcher: http://bit.ly/1OvdrDq Google Play: https://play.google.com/music/m/Ine7dtqx57ephmbncwrtubpkyt4?t=Cider_Chat and the Spotify…

Read More

The Chemical Fingerprint of Beer from a Single Experiment with Minimum Sample Preparation – A Rapid Quantitive Analysis by 1H NMR Spectroscopy

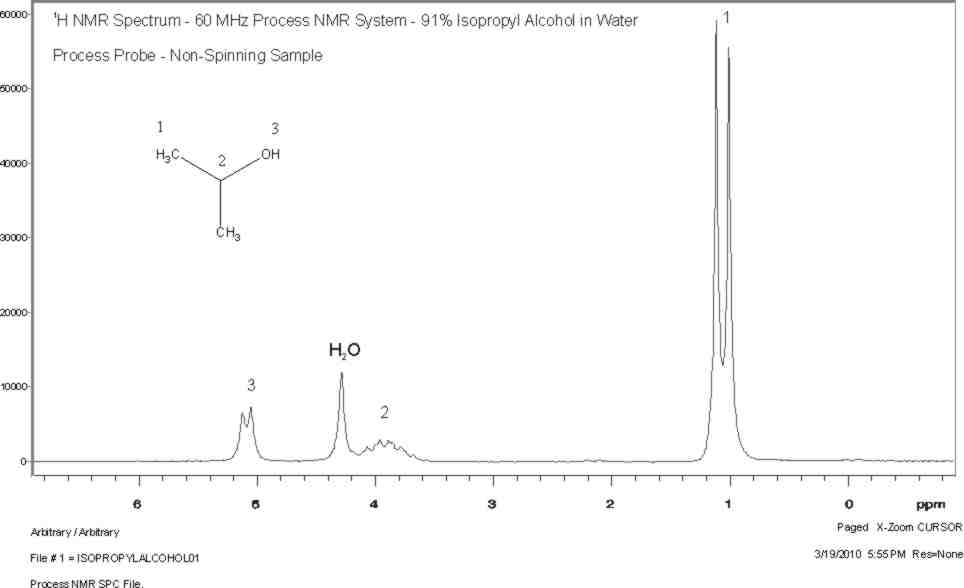

NMR Spectroscopy is the premier tool utilized by chemists to obtain detailed chemical information on molecular structure and is used extensively in molecular structure verification, chemical purity analysis, and complex mixture analysis. We have developed a quantitative NMR analysis that yields a chemical fingerprint that brewers can utilize to follow detailed variations in the chemistry observed in the various stages of the brewing process (malting, mashing, boiling, fermentation, ageing, and blending). The analysis observes all molecules in the beer at the same time and each molecular component (acids, alcohols, amino acids, malt-oligosaccharides) yields a unique spectral fingerprint pattern that is related to the structure of the molecule. Though the spectrum consists of a large number of overlapped individual fingerprints it is possible to identify and quantify individual components because many components have signals that appear at unique and specific points in the spectrum. The quantitative analysis is performed by comparing the area under the individual molecule signals to that of an internal standard (Maleic Acid 99%). Molecular components are quantified on a weight/volume basis in mg/L (parts-per million). Ethanol is also quantified on a %volume/volume basis. The technique is not only applicable to the brewing process but is also being…

Read More

References to 1H qNMR Applied to Fruit Juices and Alcoholic Beverages

qNMR “Validation of quantitative NMR”, F Malz, H Jancke, J Pharm Biomed Anal,  38, 813–823, (2005) “Quantitative 1H NMR spectroscopy”, S K Bharti, R Roy, Trends in Anal Chem, 35, 5-26 (2012) “NMR-based plant metabolomics: where do we stand, where do we go?”  H-K Kim, Y-H Choi, R Verpoorte Trends Biotech, 29(6), 267 (2011). “Universal quantitative NMR analysis of complex natural samples”, C Simmler, J G Napolitano, J B McAlpine, S-N Chen and G F Pauli, Current Opinion Biotech, 25, 51–59 (2014) “Quantitative 1H NMR: Development and Potential of a Method for Natural Products Analysis” G F Pauli, B U Jaki, D C Lankin, J. Nat. Prod., 68, 133-149 (2005) Juices “High-Field Proton NMR Studies of Apple Juices”, P S Belton, I Delgadillo, A M Gil, P Roma, F Casuscelli, I J Colquhoun, M J Dennis M Spraul, Mag Res Chem, 35, S52-S60 (1997) “Quantitative determination of (-)-epicatechin in cider apple juices by 1H NMR”, I Berregi , J I Santos , G del Campo , J I Miranda, Talanta 61 (2003) 139-145 “Use of the 1H Nuclear Magnetic Resonance Spectra Signals from Polyphenols and Acids for Chemometric Characterization of Cider Apple Juices”, G del Campo, J. I Santos, N…

Read More

Quantitative 1H NMR Analysis of “Off-the-Shelf” Commercial Kombucha Beverages for Ethanol, Organic Acids and Residual Sugars Analysis

Over the past few years our analytical NMR service has been developing a detailed chemical fingerprint analysis of alcoholic beverages by quantitative 1H NMR (qHNMR). Beyond the typical analyses of beer, wine, port, hard cider, sake and spirits, we have been looking at other fermented beverages such as kombucha, kefir, kvass, mead, ginger beer and perry. As well as the final fermented beverages we have been actively investigating the various starting materials such as malt wort, apple juice, honey, grape juice, fruit juices, and tea. The NMR analysis can provide a rapid quantitative analysis without any sample preparation based on the molar ratio of integration value of unique molecular fingerprint peaks with the integrated signal of an internal standard. In our case we typically use maleic acid as an internal standard as it’s singlet signal peak appears in a non-overlapping are of the spectrum to the chemistry we are interested in following. The information that can be derived from the NMR experiment covers a wide dynamic range of component molecule concentrations from 10-100,000 ppm. The analysis observes all fully dissolved chemical constituents and the spectral response is linear with regard to all chemical types. As a primary analytical method the…

Read More

PANIC NMR Validation Group – Website, Meetings and Organization

Validation of NMR: No Need to PANIC - Workshop held February 13, 2015, La Jolla, CA, U.S.A In conjunction with the 3rd PANIC conference in La Jolla, California, a 1-day NMR validation workshop was held that attracted approximately 80 interested participants. The agenda of the meeting is provided at this link (http://www.nmrvalidation.org/index.php/events/event-review) and registered participants can now download the presentations presented at the meeting. At the meeting it was decided to proceed with the idea of founding an organization dedicated to the development of validate NMR methods for use throughout all industry sectors. Organizational Scope: NMR spectroscopy provides a means to evaluate material with high compound and high material specificity. Information as to the chemical structure, stereochemistry, quantity, material composition, and material identity is encoded in the NMR spectrum. The high reproducibility of NMR spectroscopy from instrument to instrument and lab to lab makes NMR an excellent tool for material validation. Approaches to utilizing NMR as a material validation tool include using (1) targeted approaches, the identification and quantification of specific components, and (2) non-targeted approaches, the use of chemometric methods to evaluate the spectrum as a whole. Efforts to increase the number and the speed of validated NMR methods…

Read More

1H qNMR of Alcoholic Cider – Analysis of Small Molecule and Residual Sugar Chemistry

1H quantitative NMR (qNMR) has been utilized to assess the the small molecule and carbohydrate chemistry of a number of home-brewed and commercial alcoholic ciders. A quantitative chemistry distribution of the products of the various fermentations that occur in cider making. Malolactic fermentation as well as fermentation by saccharomyces and wild yeasts occur in the cider making process which traditionally occurred without the intentional addition of yeast by the manufacturer. The distribution of small molecules produced by the yeast and bacterial metabolomes at work in the process can yield information of the sensory perception of ciders produced in different ways. An investigation of the residual sugar chemistry of commercial ciders gives some indication of the process of sweetening commercial cider products with sugar additions after fermentation is complete. These typical commercial ciders are very different in chemistry distribution compared to very dry cider styles such as those found in the Basque region of Spain where fermentation is taken to the extreme resulting in complete conversion of sugars to alcohol but also glycerols to 1,3 propandiol. Finally it was decided to determine how much quantitative chemistry information could be obtained from benchtop NMR systems operating in the 60 MHz range. These…

Read More

PNA to Present 4 Topics at the 2015 ACS North East Regional Meeting

John Edwards of Process NMR Associates will be presenting 4 papers at the 2015 ACS Northeast Regional Meeting that will be held in Ithaca, NY, June 10-13, 2015. ABSTRACT ID: 2283171 ABSTRACT TITLE: 1H qNMR of Alcoholic Cider - Analysis of Small Molecule and Residual Sugar Chemistry (final paper number: 43) SESSION: Food Chemistry SESSION TIME: 5:00 PM - 9:00 PM PRESENTATION FORMAT: Poster DAY & TIME OF PRESENTATION: Wednesday, June, 10, 2015, 5:00 PM - 9:00 PM ROOM & LOCATION: Emerson Suites - Campus Center ABSTRACT ID: 2283063 ABSTRACT TITLE: Nutritional Supplement and Diesel Fuel Application Development for Benchtop NMR Systems Operating at 42, 60, and 80 MHz – Equivalency with Supercon NMR (final paper number: 336) SESSION: Analytical Chemistry SESSION TIME: 9:00 AM - 11:30 AM PRESENTATION FORMAT: Oral DAY & TIME OF PRESENTATION: Friday, June, 12, 2015 from 9:45 AM - 10:05 AM ROOM & LOCATION: 222 - Williams Hall ABSTRACT ID: 2283105 ABSTRACT TITLE: Survey of Low Field NMR Spectrometer Platforms for Successful Screening of Sexual Enhancement and Weight Loss Supplements for Adulteration with Drugs and Drug Analogs (final paper number: 386) SESSION: Medicinal Chemistry SESSION TIME: 1:00 PM - 3:20 PM PRESENTATION FORMAT: Oral DAY…

Read More

Polyalphaolefin Hydrogenation – Residual Olefin Analysis – 1H NMR versus Bromine Number

1H NMR is an excellent tool for monitoring the residual olefin content of polymers after hydrogenation reactions. The fact that the olefin fall in a unique region of the spectrum means that it is a straightforward measurement to quantify the %H present as olefin or to correlate that olefin content with other analyses such as bromine number. Here is an example of a polyalphaolefin residual olefin analysis. The olefin proton content (%H) was plotted against bromine number values obtained on each of the samples. A linear correlation was obtain but two different correlations were observed that were dependent on the viscosity index of the polyalphaolefin being analyzed. Figure 1 shows the 1H NMR spectra obtained on neat samples on a Picospin-80 spectrometer operating at 82.3 MHz. The methyl and methlene protons of the polymer backbone are plainly seen and the olefin and alpha-olefin protons are observed.   Figure 2 shows the linear correlation between %H olefin and bromine number with the two correlations caused by different VI grade being indicated. The analysis shows that for the two viscosity grades the grade can be identified from the linear correlation that the data falls onto and the %H olefins content can directly…

Read More

NMR Detection of Tomato Paste Spoilage in 1000 Liter Metal Lined Totes

Poster to be Presented at the 56th ENC, Asilomar CA, April 2015 NMR Detection of Tomato Paste Spoilage in 1,000 L, Metal Lined Totes Michele Martin1; Paul Giammatteo2; Michael McCarthy1; Matthew Augustine1 1University of California, Davis, Davis, California; 2Process NMR Associates, Danbury, CT Abstract Low field nuclear magnetic resonance (NMR) is used as a non-invasive method for detecting spoiled tomato paste. It is shown that the 1H T1 and T2 relaxation times change as tomato paste spoils due to changes in viscosity and/or changes in the concentration of paramagnetic compounds. With the goal of developing a spoilage detector that can be used in a tomato processing facility, a γBo = 19.5 MHz single-sided handheld NMR instrument is used. Due to the dominance of diffusion on relaxation measurements made with the single sided instrument, the slope of the amplitude of a spin echo for three different delay times is used to provide a viscosity dependent parameter that permits the differentiation between pristine and spoiled tomatoes. One-Sided NMR - Non-Invasive Analysis of Tomato Paste

Read More

Residual Catalytic Cracker – Heavy Petroleum Feedstream Properties from 1H NMR at 43 MHz

Back in October we presented a talk at Gulf Coast Conference that concerned the prediction of the chemical and physical properties of heavy petroleum feeds being converted to higher value product in a residual catalytic cracker (RCC). Over the years we have analyzed these materials by 300 and 60 MHz NMR and obtained good PLS-regression models that can adequately predict properties for real-time process control and optimization in a petroleum refinery. With the advent of a large number of new benchtop NMR systems we have been convincing ourselves that these types of analyses can be performed by systems such as the Magritek Spinsolve 43 MHz. We ran a series of samples that had been sitting around our lab for 15 years by dissolving them at about 50 volume% in a 50/50 CDCl3/CS2 solvent system. For each sample we had laboratory test data for a number of chemical and physical properties of interest to process engineers. We regressed the lab data variability against the variability in the Magritek 43MHz 1H NMR spectra and obtained cross-validated PLS models. The presentation material is given here at this link - Gulf Conference Presentation - 43 MHz RCC Feedstream Regression Models

Read More

Benchtop NMR Systems – Sensitivity with Complex Pharmaceutical Molecules

PNA has been conducting a number of studies into the adulteration of male enhancement herbal suplements with PDE5 inhibitors such as viagra, cialis and a wide number of analogs (Mw approximately 475 amu). Standard materials for the analogs are quite expensive so in th eprocess of developing ID and purity methods on our NMR systems we ran the 1H NMR on our 300, 60, and 43 MHz NMR systems at a concentration of 5mg/ml which equates to 0.01 Molar. This PDF of the NMR data demonstrates the sensitivity and resolution obtainable on these bench-top 5mm NMR systems. They can readily look at samples at these concentrations. They can readily be utilized as screening tools or as quantitation and identification analyzers. The PDF file containing the Varian 300, Aspect-60, and Magritek 43 MHz data can be found here: NMR Data-0.01 Molar_PDE5 Analogs 300_60_43_MHz

Read More

Beer and Cider Analysis – Example of Spectral Repeatability of Benchtop 60 MHz NMR System

Here is an example of spectral reproducibility. We are doing a lot of beer NMR at the moment on our 300 MHz NMR and for "giggles" we are running many samples through the various bench-top systems in our lab. We have been quantifying small organic acids (lactic, acetic, succinic , malic, citric, etc.) as they can give some idea of yeast activities and health during fermentation. We are also quantifying  and studying the 1,4/1,6 linkage distribution of residual dextrins. The series of superimposed spectra below consists of 28 spectra of a freeze dried beer sample (a unique Belgian Dubbel. Each spectrum was 128 pulses and took approximately 30 minutes per spectrum. So the superimposed data represents a 14 hour continuous stability test.The data was automatically processed with 16K zero-fill and autophase.It looks pretty damn good.   We've been looking at a lot of sour beers - here is a home-brewed Flemish Red aged in an oak barrel - note the high lactic and acetic content. We've also been analyzing a lot of hard ciders - commercial and home-brewed varitieties of various styles - very different from one sample to another in the small molecule and sugar chemistry.     1H…

Read More

Benchtop NMR – Screening Tool for Adulterated Herbal Supplements

Survey of Low Field NMR Spectrometer Platforms for Successful Screening of Sexual Enhancement and Weight Loss Supplements for Adulteration with Drugs and Drug Analogs John C Edwards1, Kristie M Adams2, and Anton Bzhelyansky2 1Process NMR Associates, Danbury, CT 2United States Pharmacopeial Convention, Rockville, MD The adulteration of dietary supplements (or natural health products) with synthetic pharmaceuticals is an area of increasing concern, which presents substantial risk to public health. Widely available in retail and via the Internet, these products are often marketed as sexual enhancement, weight loss and/or bodybuilding supplements. Unlike prescription drugs, supplements do not require premarket approval by FDA before they are made available for public consumption. In fact, the agency can only take investigational action after the adulterated product has caused harm and the adverse event has been reported via MedWatch (FDA’s online portal for voluntary reporting of adverse events associated with drugs, medical devices and dietary supplements). Development of analytical tools for screening and identification of adulterated products in the marketplace represents a significant step forward in the fight against adulterated dietary supplements. Several organizations, including AOAC and USP, have undertaken initiatives to evaluate and recommend analytical methodologies for screening supplements for adulteration. HPLC and mass…

Read More

1H Benchtop NMR Analysis of Physical and Chemical Properties of Diesel Fuel

1H Benchtop NMR has great potential to increase the throughput of both routine and emergency fuel sample analysis in refinery laboratories. Currently fuel samples must be passed through multiple dedicated analyzers to obtain information such as density, H-Content, aromatics, olefins, saturates, benzene, Octane numbers, cetane index, cetane number, distillation curves, vapor pressure, flash point, pour point, freeze point, cloud point, etc. Correlation of the 1H NMR spectra of these refinery fuel samples to these primary test results will allow all parameters to be predicted in about 40 seconds from the 4 pulse spectrum of the pure fuel. Here we have a few examples obtained on some diesel fuels that were submitted to our lab for ASTM D7171 – Hydrogen Content by TD-NMR. We had density, H-content, and aromatics wt% by GC. Below are three example correlation obtained on the Picospin 80 system (that requires 32 pulses per sample due to the capillary sample size). The results were very similar for the 300, 60, and 42 MHz data obtained on the three other NMR system in our laboratory. The comparative results are shown in Table II. The results are very similar independent of the field strength of the NMR system. The…
